for adjusting the engine timing when e.g. changing
the timing belt, cylinder head repairs, etc.
- suitable for the following engines:
- Opel 1.9 CDTi engines Z19DT, Z19DTH, Z19DTJ
- Alfa Romeo 1.9 and 2.4 L Diesel with engine codes:
323.02, 371.01, 342.02, 325.01, 362.02, 182B9.000,
937A2.000, 937A3.000, 192A5.000, 192B1.000,
937A4.000, 937A5.000, 939A2.000, 939A1.000,
939A7.000, 939A8.000, 839A6.000, 841C.000
- Fiat 1.9 and 2.4 L Diesel with engine codes:
182B4.000, 182B9.000, 185A6.000, 186A6.000,
186A8.000, 186A9.000, 188A2.000, 188A7.000,
188B2.000, 192A1.000, 192A3.000, 192A5.000,
192A8.000, 192A9.000, 192B4.000, 192B5.000
198A2.000, 198A3.000, 198A6.000, 199A5.000
223A7.000, 937A5.000, 939A1.000, 939A2.000
939A3.000, 939A7.000

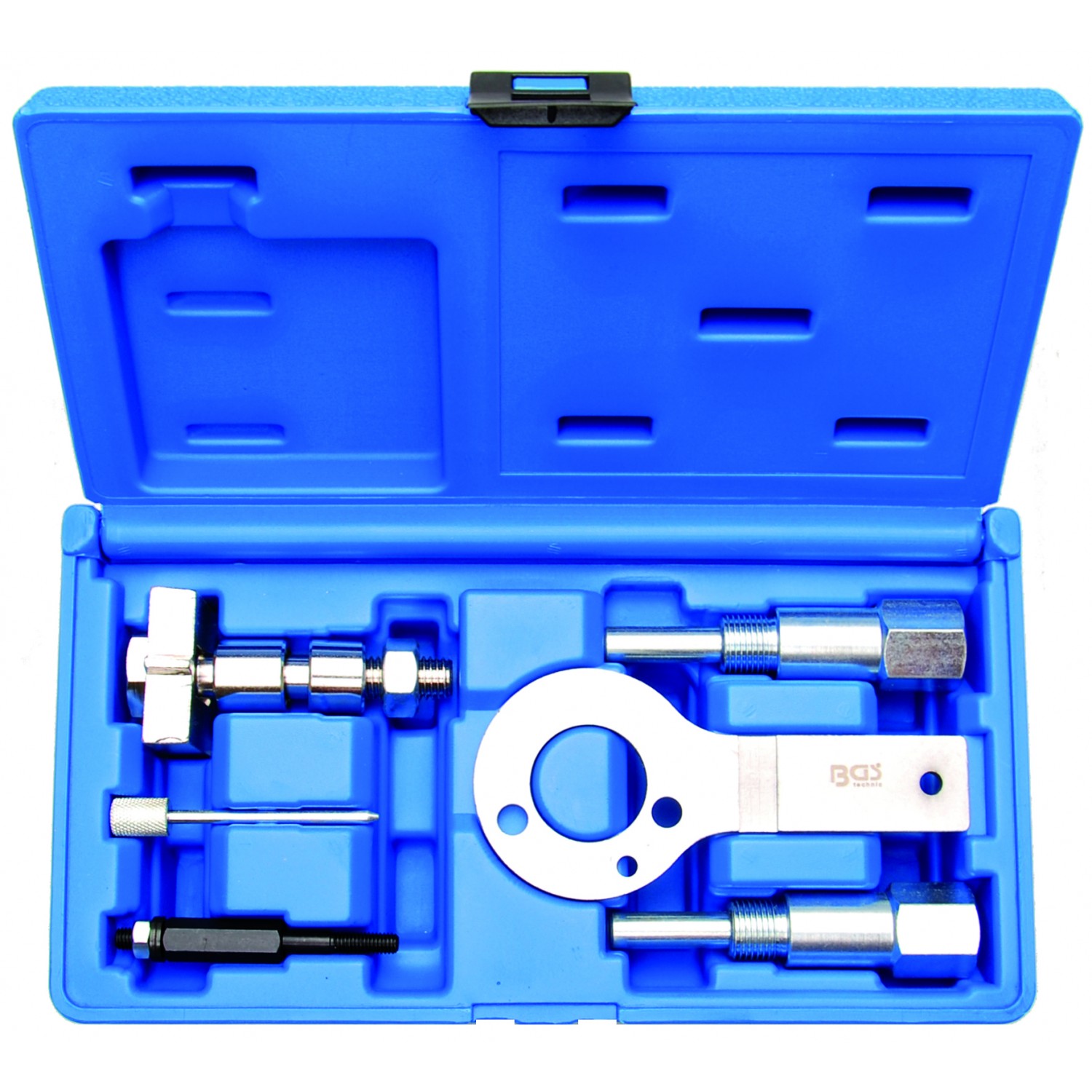

- includes the following tools:
- crankshaft locking tool
to be used as OEM Opel EN-46788 /
Fiat 1.860.905.000 / 1.860.905.010
- flywheel locking tool
to be used as OEM Fiat 1.860.898.000
- camshaft locking tool
to be used as OEM Opel EN-46789 /
Fiat 1.870.896.900
- locking pin Ø 3.7 mm x 70mm
to be used as OEM Opel KM 6130 / KM 6349
